GEMU process solenoid valves
Valves with an electromagnetic actuator

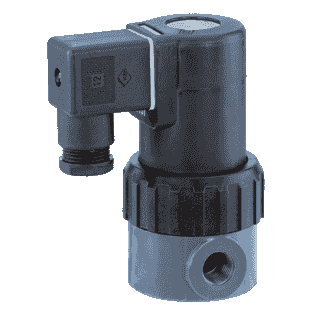

52
Electrically operated solenoid valve
- Media temperature :-20 to 100 °C
- Ambient temperature:10 to 40 °C
- Operating pressure :0 to 6 bar
- Nominal sizes:DN 2 to 6
- Connection types:Threaded connection
- Connection standards:DIN | ISO
- Body materials:PVC-U, grey | PVDF
- Supply voltages:12 V DC | 120 V AC, 50/60 Hz | 230 V AC, 50/60 Hz | 24 V AC, 50/60 Hz | 24 V DC
- Protection class:IP 65
- Conformities:EAC | UL Recognized US
102
Electrically operated solenoid valve
- Media temperature :-20 to 100 °C
- Ambient temperature:10 to 40 °C
- Operating pressure :0 to 4 bar
- Nominal sizes:DN 6 to 10
- Connection types:Solvent cement socket | Threaded connection
- Connection standards:DIN | ISO
- Body materials:PVC-U, grey | PVDF
- Supply voltages:12 V DC | 120 V AC, 50/60 Hz | 230 V AC, 50/60 Hz | 24 V AC, 50/60 Hz | 24 V DC
- Protection class:IP 65
- Conformities:EAC | UL Recognized US
202
Electrically operated solenoid valve
- Media temperature :-20 to 100 °C
- Ambient temperature:10 to 40 °C
- Operating pressure :0 to 2 bar
- Nominal sizes:DN 10 to 15
- Connection types:Threaded connection
- Connection standards:DIN | ISO
- Body materials:PVC-U, grey | PVDF
- Supply voltages:120 V AC, 50/60 Hz | 230 V AC, 50/60 Hz | 24 V AC, 50/60 Hz | 24 V DC
- Protection class:IP 65
- Conformities:EAC | UL Recognized US
205
Electrically operated solenoid valve
- Media temperature :-20 to 100 °C
- Ambient temperature:10 to 40 °C
- Operating pressure :0 to 2 bar
- Nominal sizes:DN 10 to 15
- Connection types:Threaded connection
- Connection standards:DIN | ISO
- Body materials:PVC-U, grey | PVDF
- Supply voltages:120 V AC, 50/60 Hz | 230 V AC, 50/60 Hz | 24 V AC, 50/60 Hz | 24 V DC
- Protection class:IP 65
- Conformities:EAC | UL Recognized US
225
Electrically operated solenoid valve
- Media temperature :-20 to 100 °C
- Ambient temperature:10 to 40 °C
- Operating pressure :0 to 2 bar
- Nominal sizes:DN 10 to 15
- Connection types:Threaded connection
- Connection standards:DIN | ISO
- Body materials:PVC-U, grey | PVDF
- Supply voltages:120 V AC, 50/60 Hz | 230 V AC, 50/60 Hz | 24 V AC, 50/60 Hz | 24 V DC
- Protection class:IP 65
- Conformities:EAC | UL Recognized US
8253
Electrically operated solenoid valve
- Media temperature :-10 to 110 °C
- Ambient temperature:-10 to 50 °C
- Operating pressure :0 to 16 bar
- Nominal sizes:DN 8 to 50
- Connection type:Threaded connection
- Connection standards:DIN | ISO | NPT
- Body materials:1.4408, investment casting material | CW617N, brass
- Supply voltages:110 V AC, 50/60 Hz | 230 V AC, 50/60 Hz | 24 V AC, 50/60 Hz | 24 V DC
- Conformities:CSA | EAC
8257
Electrically operated solenoid valve
- Media temperature :-10 to 150 °C
- Ambient temperature:-10 to 50 °C
- Operating pressure :0 to 10 bar
- Nominal size:DN 10
- Connection type:Threaded connection
- Connection standards:DIN | ISO | NPT
- Body materials:1.4408, investment casting material | CW617N, brass
- Supply voltages:230 V AC, 50 Hz | 230 V AC, 60 Hz | 24 V AC, 50 Hz | 24 V AC, 60 Hz | 24 V DC
- Conformities:EAC
8258
Electrically operated solenoid valve
- Media temperature :-10 to 110 °C
- Ambient temperature:-10 to 50 °C
- Operating pressure :0,1 to 16 bar
- Nominal sizes:DN 8 to 50
- Connection type:Threaded connection
- Connection standards:DIN | ISO | NPT
- Body materials:1.4408, investment casting material | CW617N, brass
- Supply voltages:110 V AC, 50/60 Hz | 230 V AC, 50/60 Hz | 24 V AC, 50/60 Hz | 24 V DC
- Conformities:EAC
8259
Electrically operated solenoid valve
- Direct acting, normally open or normally closed
- Valve operates without minimum pressure differential
- High flow rates
- Compact design
- Simple coil replacement without tools (Click-on®)
- Suitable for vacuum applications
- Explosion protected solenoids acc. to ATEX available as an option
- UL and CSA approval available
- Various threaded connections per nominal size
