GEMU check valves

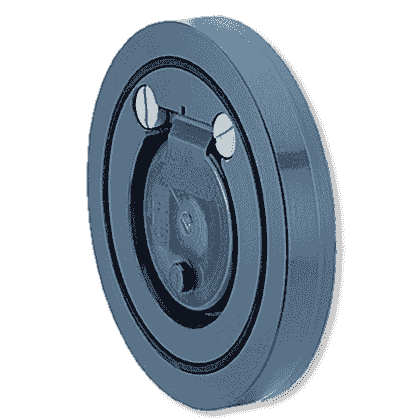

RSK
Plastic check valve
- Media temperature :-10 to 120 °C
- Ambient temperature:0 to 60 °C
- Operating pressure :1 to 10 bar
- Nominal sizes:DN 32 to 600
- Connection types:Flange
- Connection standards:ANSI | DIN | EN | ISO
- Body materials:PP | PVC-U, grey | PVDF
- Seal materials:FKM | NBR | PTFE
- Disc materials:PP-H | PVC-U | PVDF
- Conformities:EAC

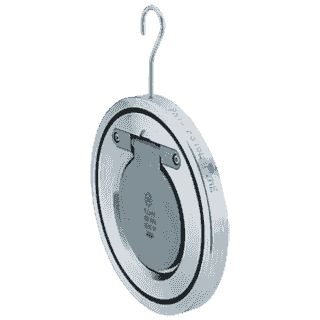

ZRSK
Metal check valve
- Media temperature :-10 to 200 °C
- Ambient temperature:20 to 95 °C
- Operating pressure :1 to 16 bar
- Nominal sizes:DN 32 to 600
- Connection types:Flange
- Connection standards:ANSI | DIN | EN | ISO
- Body materials:1.0460, galvanized cast steel material | 1.4408, investment casting material | 1.4571, forged material | 2.0975, cast bronze material
- Seal materials:EPDM | FKM | NBR | PTFE
- Disc materials:1.0460, galvanized cast steel material | 1.4408, investment casting material | 1.4571, forged material
- Conformities:ATEX | EAC | FDA
